Fluke Networks
Fluke-MS2-100-Fault locator and Tone Generator
Model No :
MS2-100
Part Code :
2772449

Overview

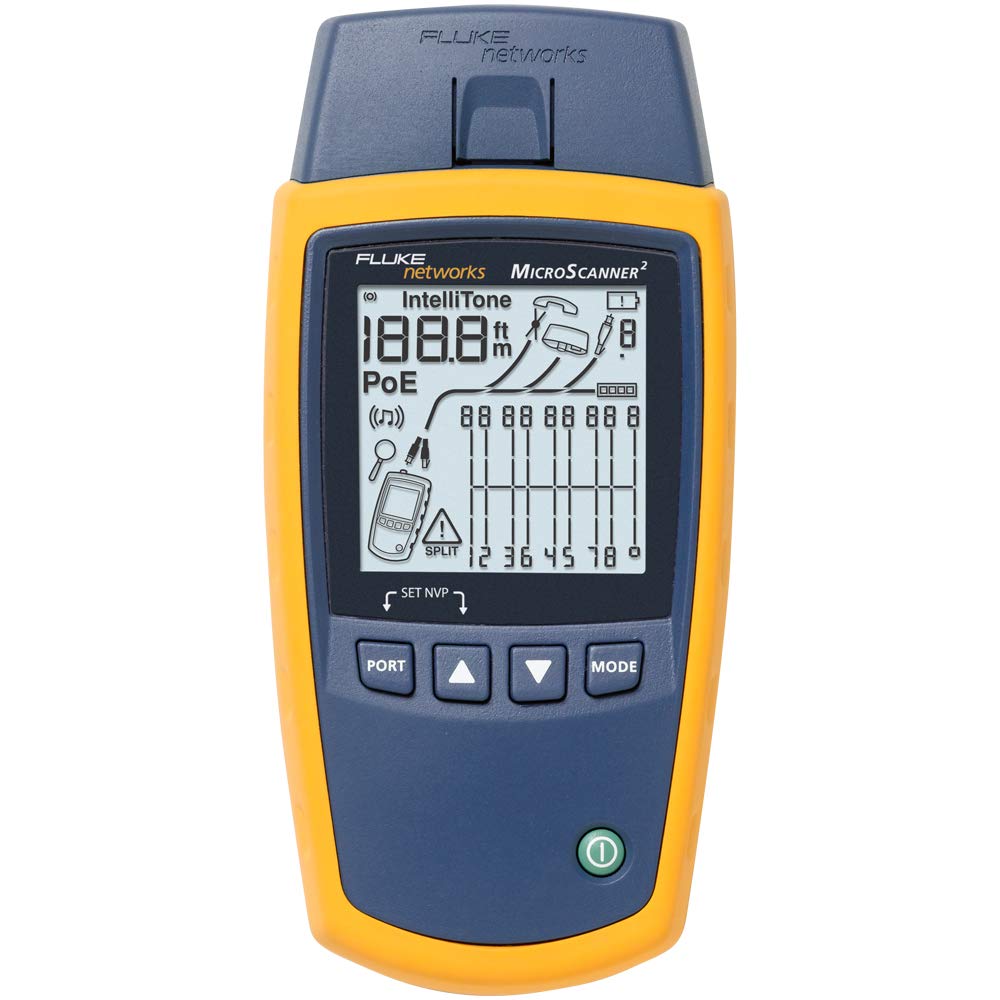

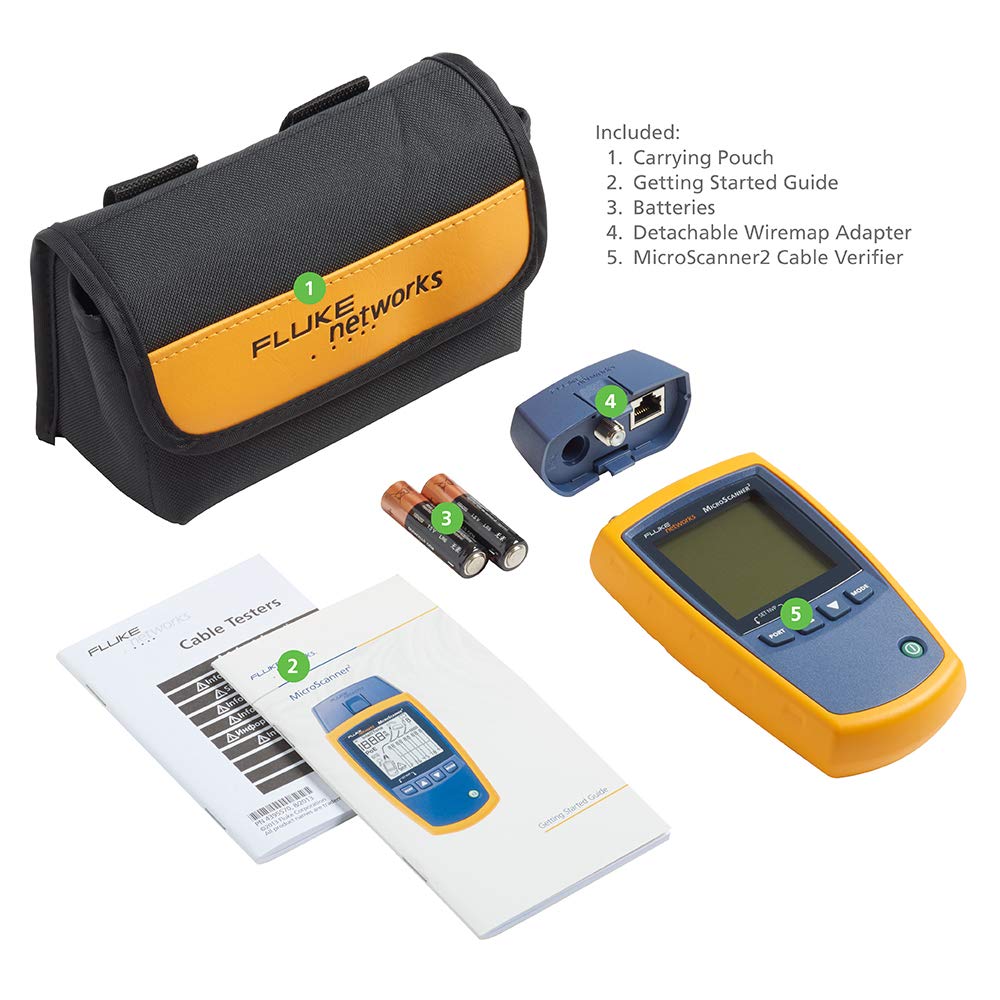

The MicroScanner2 Cable Verifier presents a revolutionary change in voice, data, and video cable testing. It starts by taking results from what was four different test modes and displaying them all at once – graphical wiremap, pair lengths, distance to fault, cable ID, and far end device. What’s more, its integrated RJ11, RJ45, and coax cable test ports support virtually any type of low-voltage cable testing with no need for awkward adapters.

Features
Features:
- Revolutionary Interface
- Multimedia Support
- IntelliTone Toning
- VDV Service Detection
- Rugged Housing
General Specifications
- Test Connectors:
• Twisted-pair: UTP, FTP, SSTP 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs; Coax: F-connector for 75 O, 50 O, 93 O cables

- Cable Tests:
• Length (460 m or 1500 ft. with resolution to 0.3 m or 1 ft.), wiremap to TIA-568A/B standards, remote ID locators; displays results on one screen

- Tone Generator:
• IntelliTone digital tone: [500 KHz]; analog tones: [400Hz, 1KHz]
• PoE Detection
• Solicits and detects the presence of 802.3af compatible PoE (Power over Ethernet) devices
• Ethernet Port Test
• Advertised speed of 802.3 Ethernet ports (10/100/1000)

- Power Source:
• Battery type: 2 AA (NEDA 15A, IEC LR6) alkaline batteries
• Battery life: 20 hours of typical use
• Other compatible battery types: 2 AA photo lithium, NIMH, NICAD

- Specifications:
• 3 in x 6.4” x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm) weight
• 0.8 lbs. (363 grams)
• Monochrome liquid crystal display (LCD) with backlight
• User-configurable NVP for twisted pair and coax; determines actual NVP with known length of cable
• Operating Temperature 32 °F to 113 °F (0 oC to 45 oC)
• Storage Temperature: -4 °F to +140 °F (-20 oC to +60 oC)
• Operating Humidity: 90 % (50 °F to 95 °F; 10 oC to 35 oC) (%RH without condensing) 75 % (95 °F to 113 °F; 35 oC to 45 oC)
• Shock Vibration Meets requirements for MIL-PRF-28800F for Class 2 random vibration; 1 m drop test with and without wiremap adapter attached
• Safety EN 61010-1 2nd Edition
• Altitude 4000 m; Storage: 12000 m
• EMC EN 61326-1
• Agency Certifications N10140 C-Tick EMC standard; FCC Part 15 Class A; CE European Union Directives Pollution Degree 2
