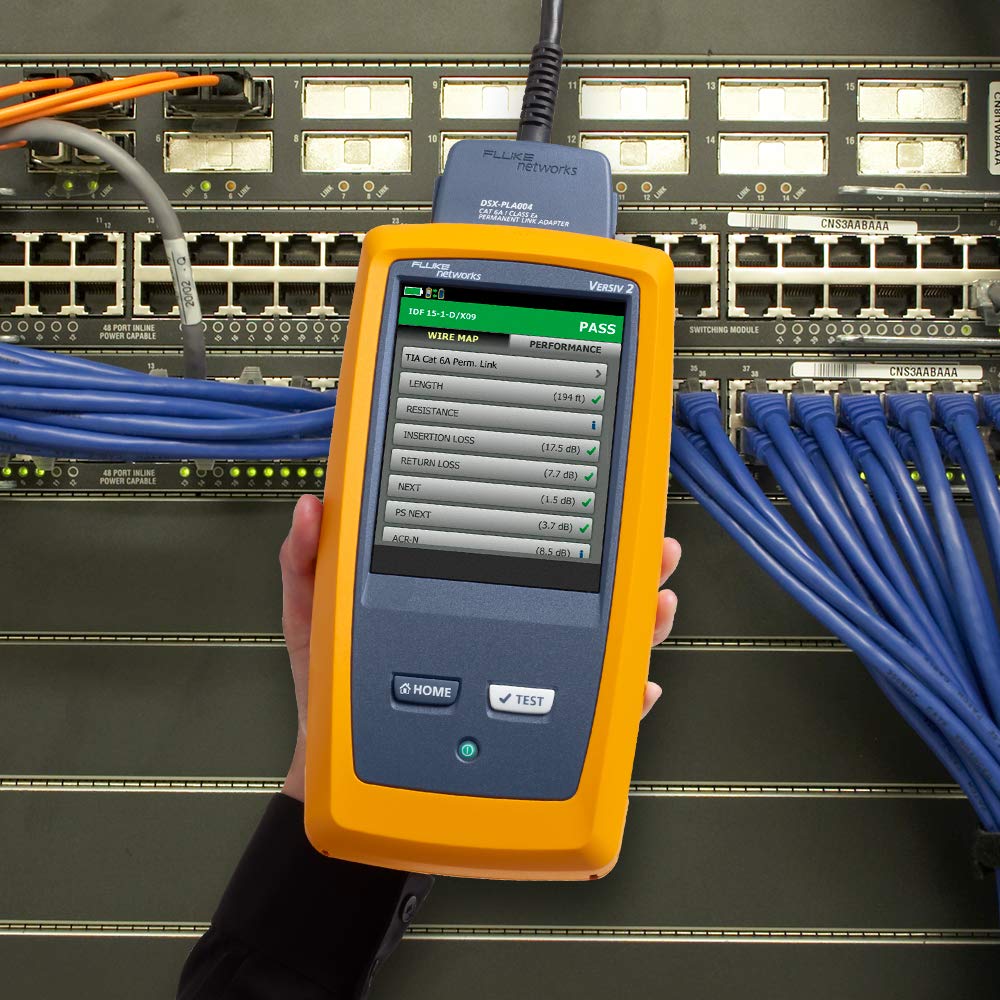

Fluke - DSX2-5000 AP - Copper Certifcation Tester
Model No :
DSX2-5000 AP
Part Code :
4330266

Overview

The DSX CableAnalyzer copper test solution enables testing and certification of twisted pair cabling for up to 10 Gigabit Ethernet deployments and handling any cabling system whether it is a Cat 5e, 6, 6A or Class FA.

Features
- Versiv enables users to accomplish more than ever with a cable tester, by accelerating every step of the testing process
- ProjX management system eases tasks from initial set-up of a job to system acceptance. It eliminates redundant steps, and ensures that all tests are completed correctly the first time, and every time
- Taptive user interface puts advanced data analysis and easy set-up and operation at the fingertips of of technicians of all skill levels
- LinkWare management software provides unmatched analysis of test results and professional test reports
- The DSX reduces the time required to fix cabling faults with Dedicated Diagnostics, a simple test that locates the problem
General Specifications
- Speed of Autotest Full 2-way Autotest of Category 5e or 6/Class D or E: 9 seconds Full 2-way Autotest of Category 6A/Class EA: 10 seconds Support test parameters (The selected test standard determines the test parameters and the frequency range of the tests)
- Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Insertion Loss (Attenuation), Return Loss (RL), NEXT, Attenuation-tocrosstalk, Ratio (ACR-N), ACR-F (ELFEXT), Power Sum ACR-F (ELFEXT), Power Sum NEXT, Power Sum ACR-N, Power Sum Alien Near End
- Xtalk (PS ANEXT), Power Sum Alien Attenuation Xtalk Ratio Far End (PS AACR-F)
- Input protection Protected against continuous telco voltages and 100 mA over-current. Occasional ISDN over-voltages will not cause damage
- Display 5.7 in LCD display with a projected capacitance touchscreen Case High impact plastic with show absorbing overmold
- Dimensions Main Versiv unit with DSX-5000 module and battery installed: 2.625 in x 5.25 in x 11.0 in (6.67 cm x 13.33 cm x 27.94 cm)
- Weight Main Versiv unit with DSX-5000 module and battery installed: 3 lbs, 5oz (1.28 kg) Main unit and remote Lithium ion battery pack, 7.2 V
- Typical battery life 8 hours Charge time* Tester off: 4 hours to charge from 10 % capacity to 90 % capacity
- Languages supported English, French, German, Spanish, Portuguese, Italian, Japanese and Simplified Chinese Calibration
- Service center calibration period is 1 year
