Warranty
2 years, with optional per year warranty extension available
|
Electrical Specifications
- Point to Point Configuration: Each FFT Secure Link controller connects to three dark single mode fibres in the sensing cable, protecting up to 40km (25 miles). Multiple FFT Secure Link controllers can protect longer network pathways - Loop Configuration: Each FFT Secure Link controller connects to two dark single mode fibres in the sensing cable, protecting network pathways for up to 80km (50 miles) - Location Accuracy: To within 25 metres (80 feet) anywhere along the data network - Zone Length and Number: Variable user-configured ‘Virtual Zones’ are created in FFT CAMS to suit specific site requirements - Probability of Detection (POD): Extremely high due to intelligent signal processing and analysis of disturbances - Nuisance Alarm Rate (NAR): Minimal due to multi-parameter intelligent signal analysis, discarding non-intrusion and environmental events - System Interface Interface: (via TCP/IP and FFT CAMS) to more than 40 security, video and access control management systems and to a wide range of devices including security cameras, lighting, PLCs, SNMP, email and text messaging. Optional dry contacts - Alarm Monitoring: FFT CAMS provides the option of real-time monitoring of alarm types and locations using an intuitive map-based user interface. Intrusion events with GIS co-ordinates are instantly displayed onto a sitemap and automatically logged into a secure database - Seasonal Calibration: No seasonal calibration or adjustments required - Operating Temperature Range: FFT Protected Cables: -55°C to +70°C (-67°F to +160°F) Controller (head end): 0°C to +45°C (32°F to +113°F) - Electrical Specifications: Input voltage 110-240V AC, 50-60Hz, auto ranging, 148W consumption, internal redundant power supplies. Optional 48V DC available
|
General Specifications

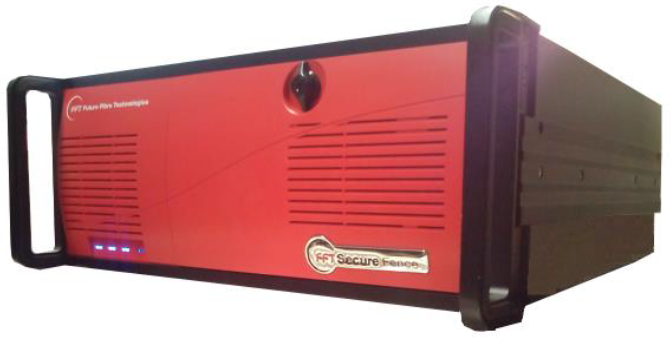

- Controller Dimensions/Weight: 177mm H x 482mm W x 497mm D (7.0”H x 19.0”W x 19.6”D) 19” rack mounted, 4U high, weight 24kg (53lbs) - Regulatory Certification: CE certified, FCC Part 15 subpart B Class B
|
