Future Fibre Technologies

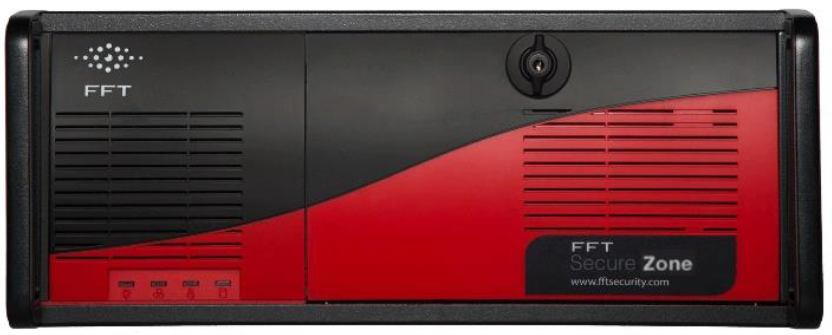

FFT Secure Zone
Model No :
FFT Secure Zone
Part Code :
FFT Secure Zone

Overview

Secure Zone is a multi-channel, fibre optic zone based system for perimeter intrusion detection and protection. Simple to install with no power or electronics in the field. Multiple perimeter security systems can be networked to monitor more complex sites.

FFT secure zone system assists in detecting intrusions on perimeter fences without the cost or need for power or electronics to be installed in the field.


FFT’s advanced signal discrimination minimises nuisance alarms, while maintaining maximum sensitivity to intrusion events.

Features
- 8 independent zones per controller (option for 16 with Secure Zone-M)
- Maximum length of 40 km per channel for single-mode fibre (Secure Zone-S)
- Low total cost of ownership
- Two year warranty
- No electronics or power in the field
- Immune to EMI/RFI
- Intrinsically safe
Warranty
2 years, with optional per year warranty extension available
Electrical Specifications
- Fiber Type: Single-mode
- Maximum Fiber Length: 40 km (25 miles) per channel (eight total) and Fiber loss must not exceed 20 dB per channel @1550 nm
- Channels: Eight independent channels (zones)
- Event Location Accuracy: Limited to size of zone
- Operating Temperature: 0°C to 45°C (32°F to 113°F)
- Front Panel User Interface: Power, Alarm Reset, and System Reset buttons
- Laser Safety Class: 1
- Communications: Optional Form C dry contacts via USB relay module and Optional FFT CAMSTM (Central Alarm Monitoring System) via TCP/IP
- Inputs and Outputs: 6 x USB2 ports ; 1 x VGA port and 2 x Ethernet port
General Specifications
- Dimensions (H x W x D): 4U, 19” rack module: 177 x 482 x 497 mm (7.0” x 19.0” x 19.5”)
- Weight: 24 kg (52 lbs 15 oz)
- Power Supply: 110 to 240 Vac, 50 to 60 Hz, auto ranging, 150 W consumption (512 BTU)
Internal redundant (dual) power supplies Optional 48 Vdc available
- Humidity: 10 to 80% Relative Humidity (RH), non-condensing
- Certification: CE, FCC Part 15 Subpart B Class B
