Netrack
General Electronics Racks-Double Section Wall Mount Racks
Model No :
Double Section Wall Mount Racks
Part Code :
Double Section Wall Mount Racks

Overview

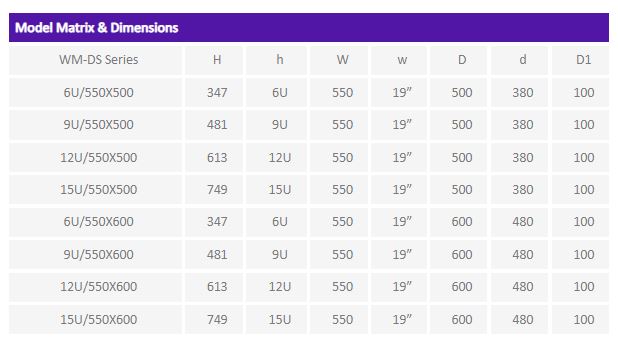

Double Section Wall Mount Racks Available in 6RU ~ 15RU Variants with 500 & 600 Depth configurations and 550 Width configurations.

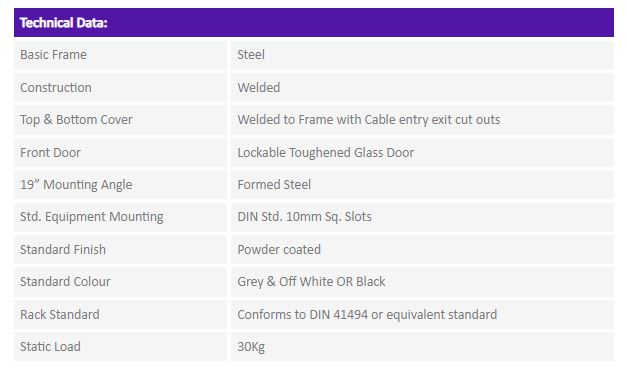

Standard for Racks configuration will be welded frame integrated with side panel / removable side panel is available and vented top cover with fan mounting provision, Associated Front Glass Door with Lock & Key.

Features
-Conforms to DIN 41494 or Equivalent EIA /ISO / EN / CEA Standard
-Adjustable mounting depth
-State-of-the-art manufacturing methods provide the best product quality and fastest delivery in the industry
-100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
-Powder coated finish with seven tank pretreatment process meeting ASTM standard
-Grounding & Bonding Options
-1 or 2 Fan Mount provision on top cover
-2 No Adjustable, 19” verticals with Punched 10 mm Square Hole and Universal 12.7mm-15.875mm-15.875mm alternating hole pattern offers greater mounting flexibility, maximizes usable mounting space.
