Netrack
NRS And NRA 4 Post Open Frames-NRS/NRA - 4 Post 800 Wide Racks
Model No :
NRS/NRA - 4 Post 800 Wide Racks
Part Code :
NRS/NRA - 4 Post 800 Wide Racks

Overview

NRA Series standard for Racks setup will be bolted frame with 4 No. Pillars made of aluminium extruded profile bolted to top and bottom ribbed strengthened or added support to frame aditionally supported depth wise by 6 no depth rail 4 folded profile. Free standing on floor with 4 No casters wheels with 2 Nos. with brakes and 2 Nos. without brakes & with levelers OR plinth.

NRS Series standard for Racks setup will be welded frame with 4 No. Pillars made of formed steel profile welded to top and bottom ribbed strengthened or added support to frame aditionally supported depth wise by 6 No depth rail 4 folded profile. Free standing on floor with 4 No. casters wheels with 2 Nos. with brakes and 2 Nos. without brakes & with levelers OR plinth.

Available in 42 RU Versions with 800,1000 & 1200 Depth setups and 800 Width setups.

Features
-Conforms to DIN 41494 or Equivalent EIA / ISO / EN / CEA Standard
-Adjustable mounting depth
-4 No Adjustable, 19" verticals with Punched 10 mm Square Hole and Universal 12.7mm-15.875mm-15.875mm alternating hole pattern offers greater mounting flexibility, maximizes usable mounting space.
-Numbered U positions
-State-of-the-art manufacturing methods provide the best product quality and fastest delivery in the industry
-100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
-Powder coated finish with Seven tank pretreatment process meeting ASTM standard
-Grounding & Bonding Options
-Fan module Mount Provision on top Cover

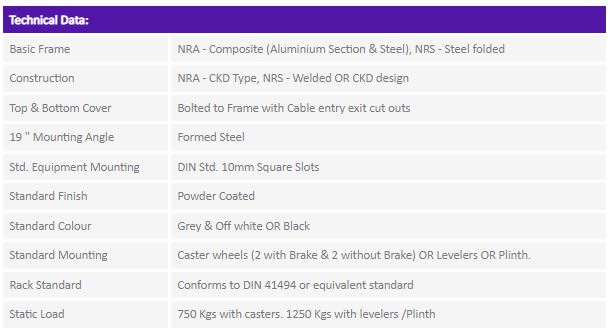

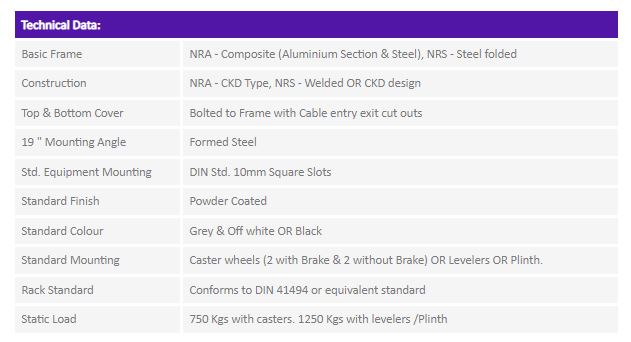

Technical Specifications
-Basic Frame :- NRA - Composite (Aluminium Section & Steel), NRS - Steel folded
-Construction :- NRA - CKD Type, NRS - Welded OR CKD design
-Top & Bottom Cover :- Bolted to Frame with Cable entry exit cut outs
-19 " Mounting Angle :- Formed Steel
-Std. Equipment Mounting :- DIN Std. 10mm Square Slots
-Standard Finish :- Powder Coated
-Standard Colour :- Grey & Off white OR Black
-Standard Mounting :- Caster wheels (2 with Brake & 2 without Brake) OR Levelers OR Plinth.
-Rack Standard :- Conforms to DIN 41494 or equivalent standard
-Static Load :- 750 Kgs with casters. 1250 Kgs with levelers /Plinth
