Fluke Networks

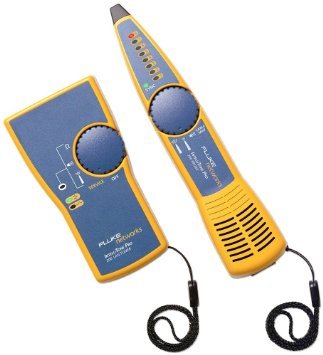

Fluke - MT-8200-60-KIT - Fault locator & Tone Generator
Model No :
MT-8200-60-KIT
Part Code :
4586068

Product Description:

Overview

An intelligent network cable toner tracer and probeto which offers digital and analog signaling all in one network toner and probe.

Features
- LOCATE the correct cable bundle using maximum radiation.
- ISOLATE a cable within the bundle using a signal with minimum radiation.
- VERIFY cable conductor continuity with an automated signal that steps through each conductor.
- Ends network cable location confusion, decisively rejects noise and false signals

General Specifications
- Operating temperature 32° F to 104° F (0° C to 40° C)
- Storage temperature -4° F to +140° F (-20° C to +60° C)
- Operating relative humidity (% RH without condensation), 95% (50° F to 95° F; 10° C to 35° C),(75% (95° F to 104° F; 35° C to 40° C)
- Uncontrolled < 50° F (< 10° C) Vibration Random, 2 g, 5 Hz – 500 Hz Shock 1 m drop test with and without module
- Safety IEC 61010 Category: None Altitude 3000 m
- EMC EN 61326-1 Battery type and life 9 V alkaline (NEDA 1604A or IEC 6LR61); 20 hours typical
- Applications Copper cabling media, including shielded (STP) and UTP cable; 75 or 50 Ohm coaxial cable; two conductor control, security, generic cabling. 10 Base-T or 10/100/1000 Base-T datacom networks.
