Zebra Technologies

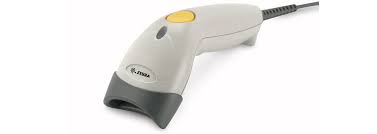

Zebra LS1203-7AZU0100ZY Barcode Scanner
Model No :
Part Code :


This bi-directional LS1203 handheld scanner handles all 1D barcodes and is ideal for small retailers. It delivers the functionality, features and reliability needed to improve operational efficiencies from the check-out line to the storeroom.It minimizes manual keying, ensures accuracy in all customer transactions, and it automates paper-based inventory processes. The device easily integrates multiple interfaces to help ensure connectivity to a host and PC system.

Entry Level Barcode Scanner
- Scanner TypeBi-directional
- Light Source (Laser)650nm laser diode
- Scan Rate100 scans per second
- Print Contrast Min.30% minimum reflectance
- Roll (Tilt): 1± 30° from normalPitch: 2± 65°Skew (Yaw): 3± 60°Decode CapabilityUPC/EAN, UPC/EAN with Supplementals, UPC/EAN 128, Code 39, Code 39 FullASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, GS1 DataBar (formerly RSS)Interfaces SupportedUSB, RS-232; Keyboard Wedge

General Specifications
- Operating Temperature: 32° to 122° F/0° to 50° C
- Storage Temperature: -40° to 158° F/-40° to 70° C
- Humidity: 5% to 95% relative humidity, non-condensing
- Drop Specs: Withstands multiple 5 ft./1.524m drops to concrete
- Ambient Lighting Tolerance: Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions
- Beeper Volume User-selectable: three levels
- Beeper Tone User-selectable: three tones
- ESD Conforms to 15 kV air discharge and 8 kV of contact discharge

3 Years
